Explaining Nucleophilic Addition / Elimination in the Reaction Between Acyl chlorides and Alcohols
This page guides you through the mechanism for the nucleophilic addition / elimination reaction between acyl chlorides (acid chlorides) and alcohols.
Ethanoyl chloride is taken as a typical acyl chloride. Any other acyl chloride will behave in the same way. Ethanol is taken as a typical alcohol. Again, any other alcohol will behave in the same way.
Important! If you haven't already done so, it would help if you first read the page What is nucleophilic addition / elimination? before you go on.
The reaction between ethanoyl chloride and ethanol has a mechanism which is identical to that between ethanoyl chloride and water, but it looks more complicated. It would be a good idea to be sure about the water mechanism before you attack this one!
The Reaction Between Ethanoyl chloride and Ethanol
Ethanol as a nucleophile
A nucleophile is a species (an ion or a molecule) which is strongly attracted to a region of positive charge in something else.
Nucleophiles are either fully negative ions, or else have a strongly δ- charge somewhere on a molecule.
Oxygen is much more electronegative than hydrogen and carbon and so drags bonding electrons towards itself. That produces a significant amount of negative charge on the oxygen atom. The oxygen also has two active lone pairs of electrons. One of these attacks the ethanoyl chloride.
Why are Acyl chlorides Attacked by Nucleophiles?
The carbon atom in the -COCl group has both an oxygen atom and a chlorine atom attached to it. Both of these are very electronegative. They both pull electrons towards themselves, leaving the carbon atom quite positively charged. It is that carbon atom which is attacked by one of the lone pairs on the oxygen atom in an ethanol molecule.
The ethanoyl chloride molecule is also planar (flat) around that carbon atom, and that leaves plenty of room for a nucleophile to attack either from above or below the plane of the molecule.
The reaction happens in two main stages – an addition stage, followed by an elimination stage.

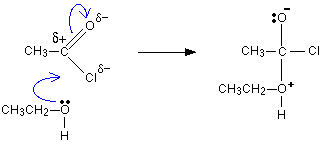

In the addition stage, an ethanol molecule becomes attached to the carbon in the ethanoyl chloride.
As the lone pair on the oxygen approaches the fairly positive carbon in the ethanoyl chloride, it moves to form a bond with it. In the process, the two electrons in one of the carbon-oxygen bonds are repelled entirely onto that oxygen, leaving it negatively charged.
Note: Only one of the two lone pairs on the oxygen in the ethanol is shown because only one of them is involved in the reaction. There's no reason why you couldn't write both in if you want to – it just clutters the diagram.
Notice that the oxygen atom in the ethanol has gained a positive charge. The underlying reason for this is that when the lone pair forms a bond with the carbon, electrons are moving away from the oxygen. What matters, though, is that you remember to show the positive charge in an exam. Think of it like this:
If you leave out the positive charge, two things are wrong with the equation:
- The charges don't balance. You start with two overall neutral molecules and, if you forgot the positive charge, you would end up with a negative ion. There has got to be a positive charge somewhere to balance the negative one.
- The oxygen looks wrong! Oxygen normally forms two bonds, but here it is forming three. Oxygen can only form three bonds if it carries a positive charge. (A positively charged oxygen atom has the same electronic structure as nitrogen – which normally forms three bonds.)
You can put both things right with a positive charge on the oxygen.

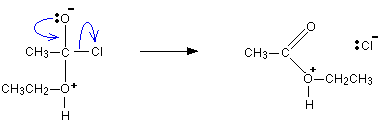

The elimination stage stage of the reaction happens in two steps. In the first, the carbon-oxygen double bond reforms. As the electron pair moves back to form a bond with the carbon, the pair of electrons in the carbon-chlorine bond are forced entirely onto the chlorine to give a chloride ion.

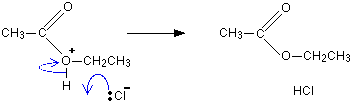

Finally, the chloride ion forms a bond with the hydrogen on the oxygen – removing it as a hydrogen ion. The electrons in the hydrogen-oxgyen bond move back onto the oxygen, cancelling the positive charge.
